Propeller Shaft Grounding System Installation by Meera Marine
Meera Marine successfully carried out the installation of a propeller shaft grounding system, a critical solution designed to protect the shaft bearings and propulsion system from electrochemical corrosion caused by stray electrical currents. The installation was completed with precision, ensuring compliance with IMO guidelines, classification society standards, and OEM recommendations.
- Site Assessment and Planning
A detailed assessment of the vessel's propulsion system was conducted, including shaft dimensions, bonding points, and electrical continuity checks.
The grounding system design was selected based on vessel type, shaft RPM, and material compatibility. - Material Preparation
The shaft grounding assembly, including silver/graphite brushes, brush holders, copper braid cables, and bonding straps, was sourced from approved manufacturers.

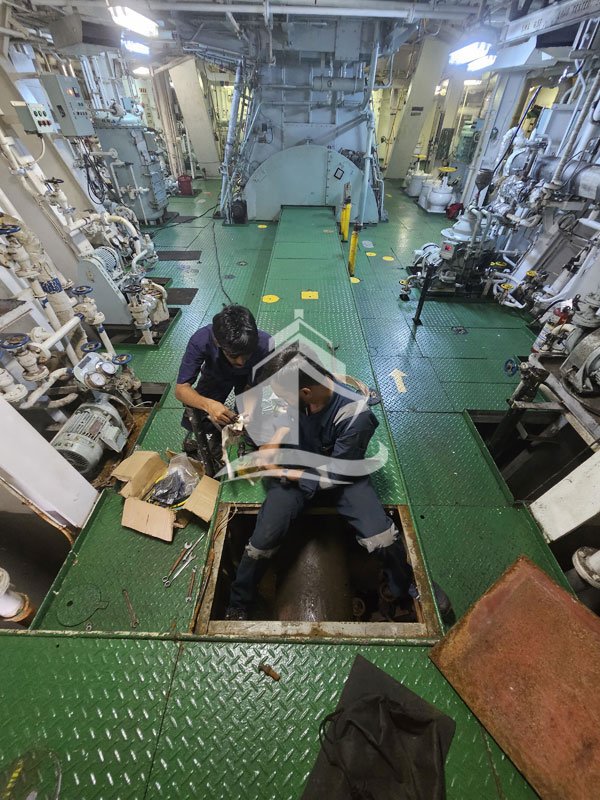

Electrical insulation materials, mounting brackets, and fasteners were prepared as per the installation plan. - Installation Procedure
The shaft surface was cleaned and polished at the grounding contact area to ensure effective electrical conductivity.

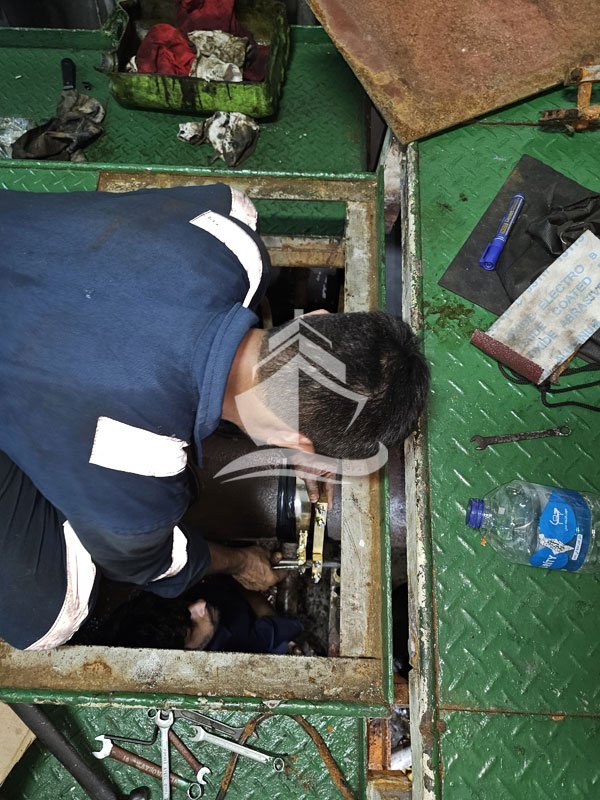

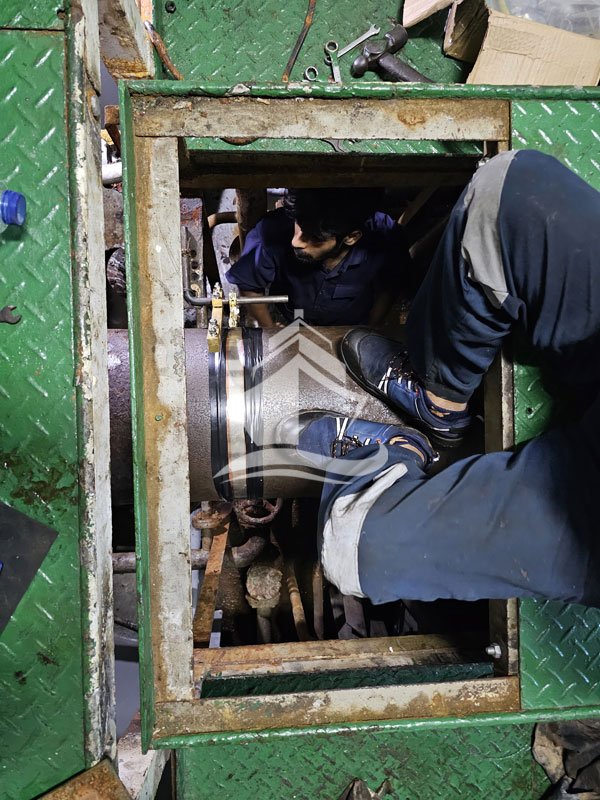

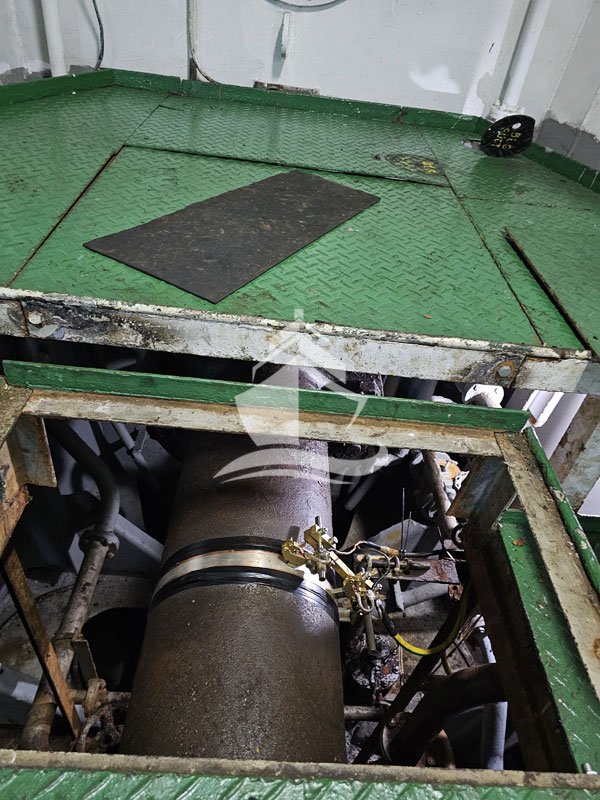

Brush holders were mounted securely on the foundation adjacent to the shaft, maintaining constant contact pressure with the rotating shaft.
Flexible copper grounding cables were connected between the brush holder and the ship's hull (earth point) using low-resistance, corrosion-resistant connections.
Continuity and insulation resistance tests were carried out to confirm effective grounding. - Testing and Commissioning
Shaft rotation tests were conducted to verify brush contact integrity and absence of arcing or vibration.
Electrical measurements were recorded, including shaft-to-hull voltage, to confirm the system was reducing potential differences to acceptable levels.
The system was fine-tuned for brush pressure and contact area to ensure long-term performance and minimal wear. - Documentation and Certification
Detailed installation records, test results, and photographs were compiled. A technical report was submitted to the ship owner and classification society for review and certification, if applicable.
Crew was briefed on routine maintenance checks, including brush wear inspection and cleaning intervals.
By professionally installing the shaft grounding system, Meera Marine helped extend the life of the vessel's propulsion components, reduce maintenance costs, and protect against costly bearing failures due to electrical discharge.
